Evaluation Kit Manual - Revision A

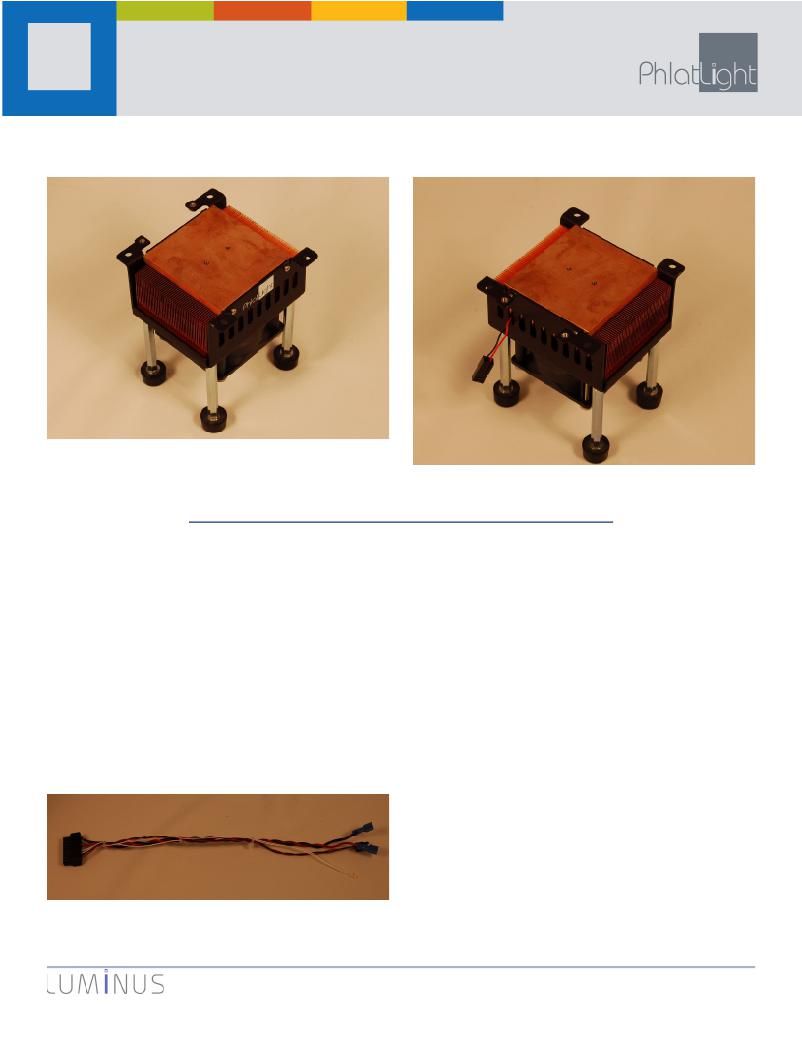

Figure 1: Heat sink module
Figure 2: Heat sink module
B: Cable Assembly
Each device connects to its own driver via a 12" long cable. For
optimum performance it is best not to increase the length of the
cable. Figure 3 shows picture of the device to driver cable.
The color code for the wires is as follows:
Figure 4 and Figure 5 show how to connect the connectors of ca-
ble assembly to the connectors on the heat sink module and the
driver card. Note that the cable assembly connectors are posi-
tioned such that the screw heads are always facing towards user.
The connectors on each end of the cable are the same. Always
RED 18 gauge wire:
BLACK18 gauge wire:
PhlatLight? anode
PhlatLight? cathode
make sure that connection is made such that the heavy gauge
wires are hooked up to the anode and cathode of the device. Re-
versing the cable may damage the cable.
WHITE/BLUE 24 gauge wire: Thermistor connections
RED 24 gauge wire:
BLACK 24 gauge wire:
Fan +12V power
Fan negative return (GND)
Figure 3: Device to driver cable assembly
Confidential ? Luminus Devices, Inc. - All Rights Reserved
Page 3
